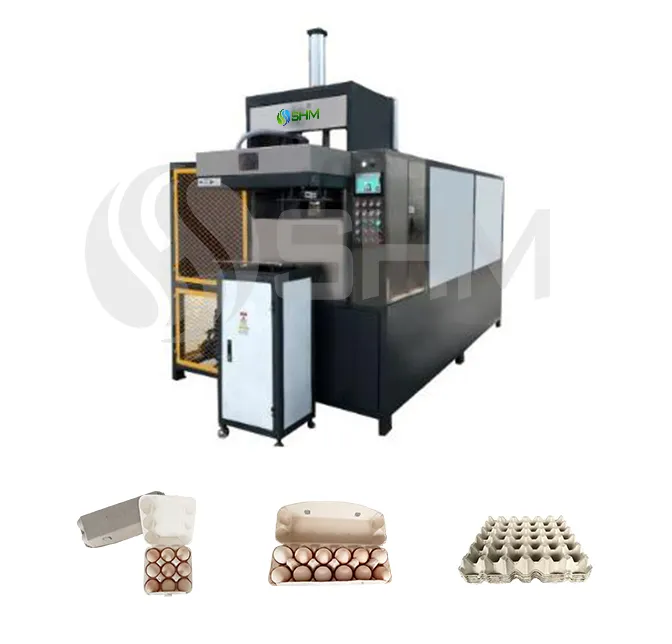

Wholesale Egg Tray Making Machine

Wholesale Egg Tray Making Machine

SHM recycled used paper egg tray making machine have the capacity from 360pcs-8000pcs per hour, the egg carton machine have three types: manual, semi-automatic and fully automatic. It mainly processes recycle waste paper into various high-quality pulp molded packaging, such as 6 egg cartons,12 egg carton,30 eggs carton,3x4 egg carton,10 egg carton,paper quail egg cartons,eggs packaging ,egg cartons 6 pack etc. Therefore, based on your requirements, we can offer you customized capacity, types, and tray molds of the egg carton machinery.

Scope of supply：

Pulp preparation system

Rotary moulding machine with customized moulds

Continuous multi-layer drying oven

Air heater with gas or oil fired burner and heat exchanger

Intermediate frame with two endless chains and carriers

Product conveyor

Product stacker

Vacuum system

Bundle press

Control cabinets

Spare parts for one years

Supervision of installation, training, operation and maintenance manuals

Related Parameters:

1. Outline dimension:24000x2640x3500mm

2. Number of layers: 6 layers

3. Fore dynamics: 1set

4. Poster dynamics: 1set

5. Pallet: chromate treatment

6. Operating temperature: 100-300℃

Dryers:

1. Single Pass

2. Multi Pass

3. Egg Carton Specific

4. Packaging Specific

5. Dryer Retrofits

Equipment related parameters:

- Power: 11KW;

- Consist of 8pcs of forming platens and 1 piece of transfer platen;

- Platen size: 1800 x 450mm. 5pcs of 30-cell egg tray molds can be mounted on each forming platen(5pcs/cycle).There are 40pcs of forming molds and 5pcs of transfer molds in total;

- Forming efficiency:20-21cycles/min;

- quip with vacuum auto drain system, preheating system, auto cleaning system for the forming mold and auto control cabinet.

Sample pictures

From the same unit, you can also produce fruit trays for horticulture produce like apples, orange, etc, and also egg cartons or egg boxes. Egg Trays are often called filler trays and usually have 30 pockets i.e., they hold 30 eggs. Eggs are either sold uncovered in the tray or wrapped with plastic film.

Eggs come on market in boxes of different shapes and sizes and that can be designed for different egg number.

How do I start my own egg tray business?

To start with an egg tray making business one needs to set up a pulp molding plant that contains egg tray making machines used for manufacturing egg trays, boxes, and other containers as required. The molded pulp in a pulp molding plant is a packaging material that is generally made from waste and recycled papers.

Raw Materials for Egg Tray Machine

SHM egg tray making machine, from the primary raw materials used to the final whole production process, compared to plastic egg tray making machine, paper egg tray machine has carried out an environmentally friendly production process. Biodegradable materials are processed to make the egg trays hard enough and 100% biodegradable and recyclable. Basic raw materials are the paper waste. Paper pulp is soft material but pulp molded products viz trays being an integrated structure have suitable rigidity, good flexibility, and stiffness which makes it a suitable package for shockproof performance.

The waste paper can be old newspapers,100% carton, old books, old hard paper case, waste paper cup and so on.  You can produce all colors of egg tray box, such as blue, pink, white, green, yellow and son on. It is a very interesting thing.  SHM has egg carton tray machine for sale.

Why choose SHM?

SHM is a global supplier of high-quality molded fiber packaging production lines, we provide sustainable and innovative solutions for the food service and packaging market.

In 1989, the founder of the company Mr Chao started his work at pulp molding industry, and holds a number of pulp molding patents.

In 2007, SHM was established.

In 2014, SHM participated in the formulation of industry standards for pulp molding in China.

Automatic pulp molding equipment factory direct, SHM team pay great importance to quality;

Approvals from Top 5 USA packaging companies;

Have CE and ISO9001 certificates;

SHM owns 40+patents for fiber molded machines.

SERVICE

1. Engineering research and technical consultation;

2. Manufacture;

3. Project Schedule;

4. Preparation of documents and drawings;

5. Training of maintenance and operation personnel;

6. Guide Assembly line installation;

7. Electrical and mechanical design;

8. System integration;

9. System test and handover;

10. One year of after-sales support;

11. Spare parts are included;

12. Installation within the scope of supply;

13 Operation support for the buyer’s factory;

14. System test after equipment delivery;

15. Documentation of assemble line.
